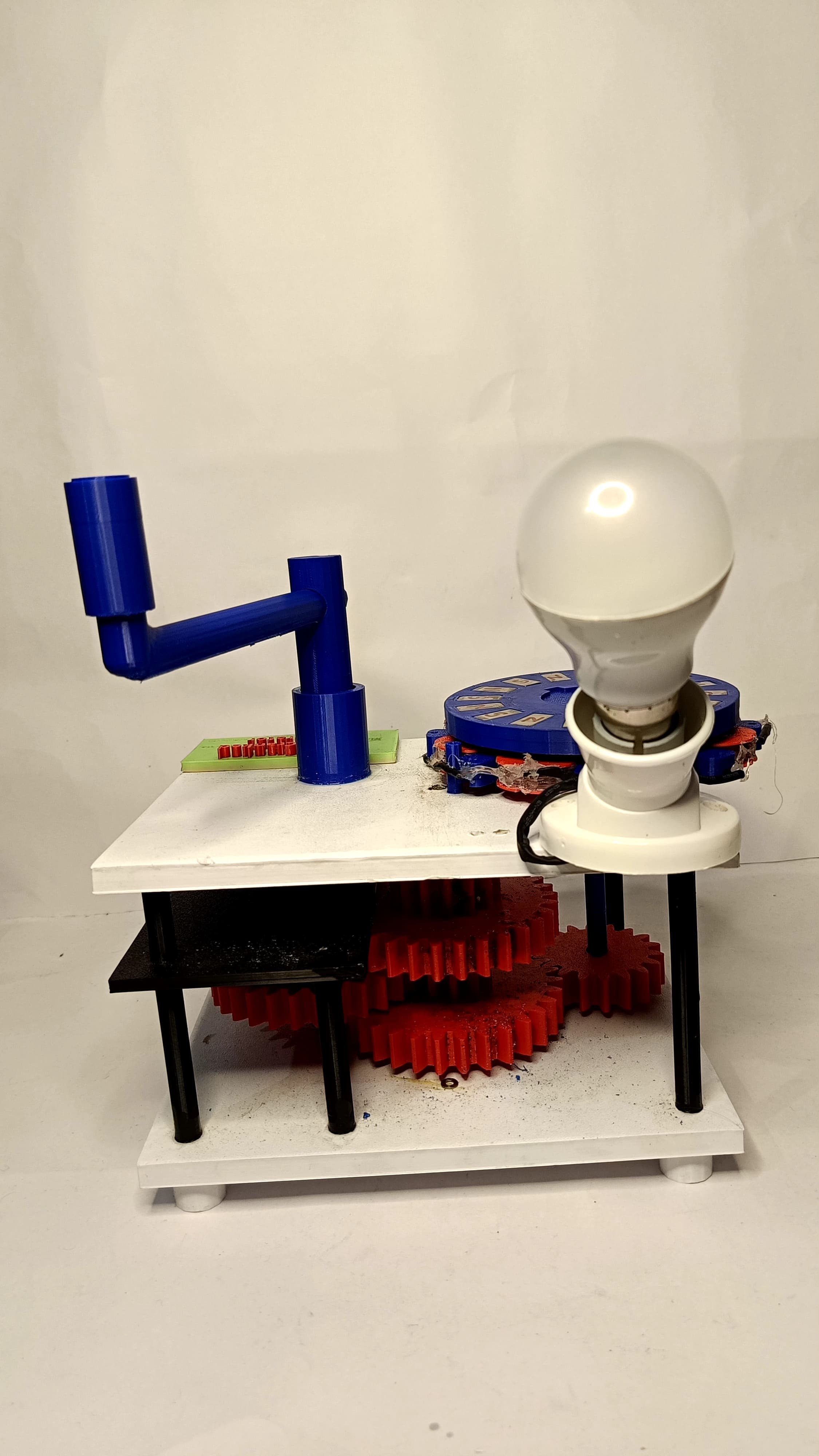

KL-Edu-01 High-Performance Hand Generator (Axial Flux Model)

Description

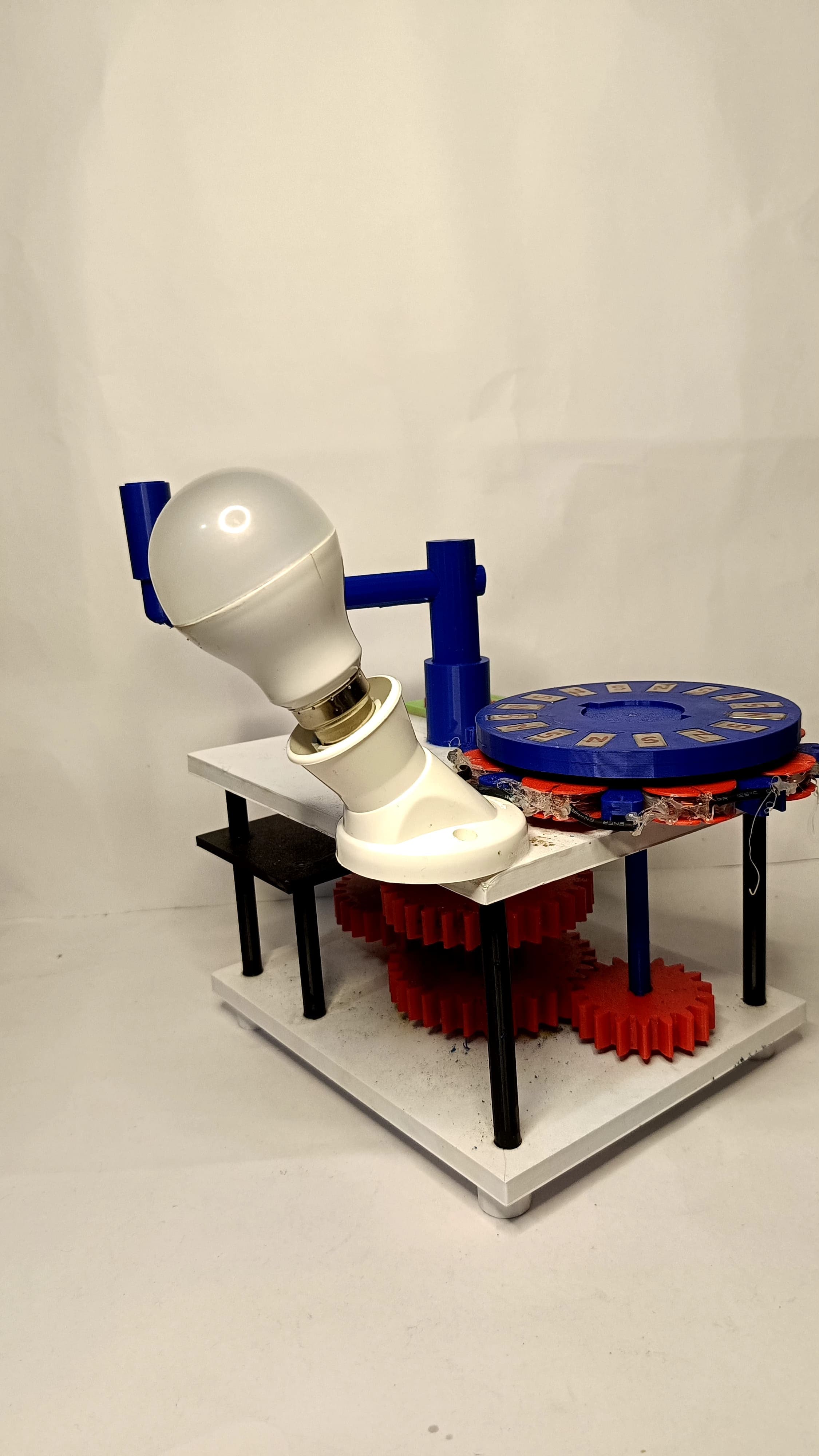

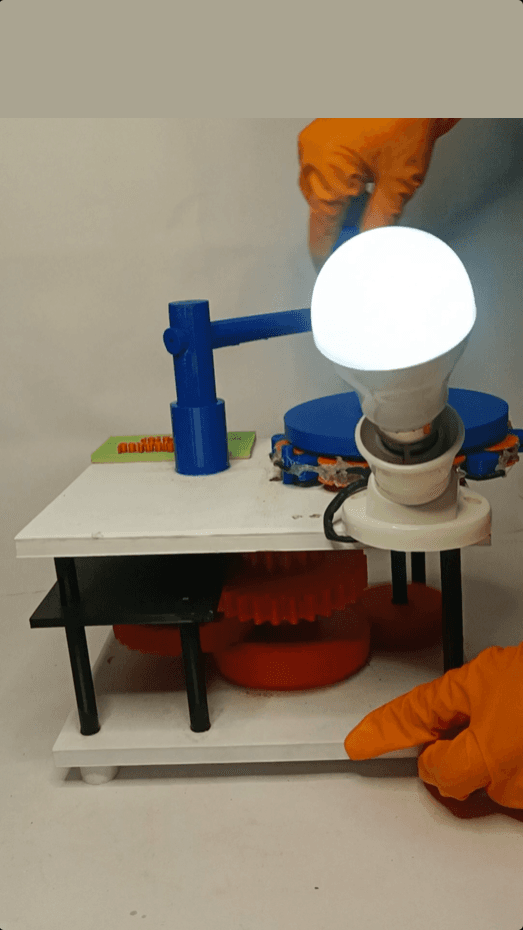

This device is a fully functional miniature power plant, not just a toy. It demonstrates how mechanical energy is converted into electrical energy using the exact same principles found in hydroelectric dams and wind turbines. Engineering Core: The model features a precision-engineered 4-Stage Compound Gear Train with a massive 22.5:1 ratio. This multiplies a comfortable human input of 60 RPM into a blazing 1,350 RPM at the generator core. +2 The Generator: Inside, an Axial Flux alternator uses 16 High-Grade N52 Neodymium Magnets spinning over 8 Copper Coils (approx. 1,800 total turns). This setup generates up to 14.4 Volts and 6 Watts of power, instantly lighting up the attached LED module. It is the perfect educational tool to demonstrate Faraday's Law, Torque, and Energy Conservation.
