High-Bypass Turbofan Jet Engine Model - Educational Cutaway
₹6500incl. delivery
Material
PLA
Dimensions
10X5X5
Weight
1200
Description

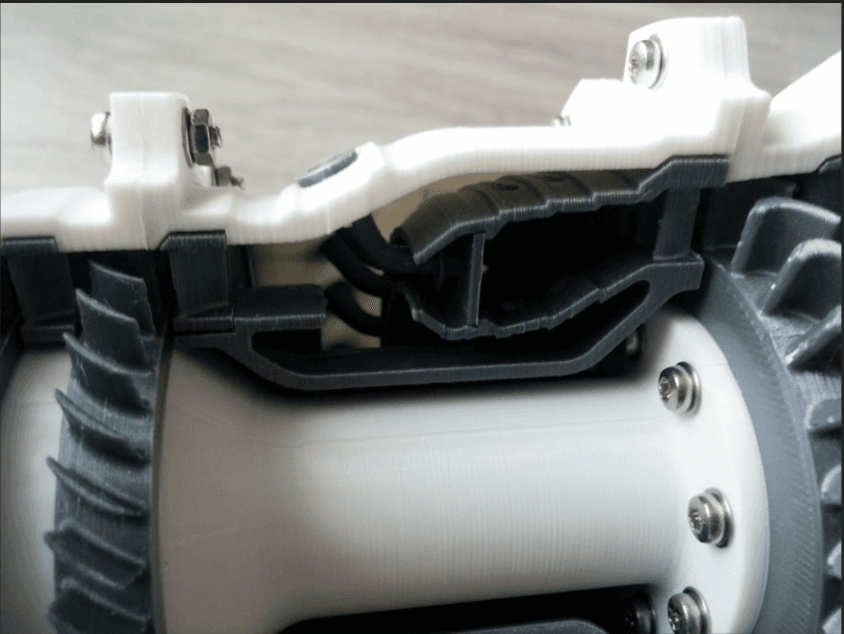

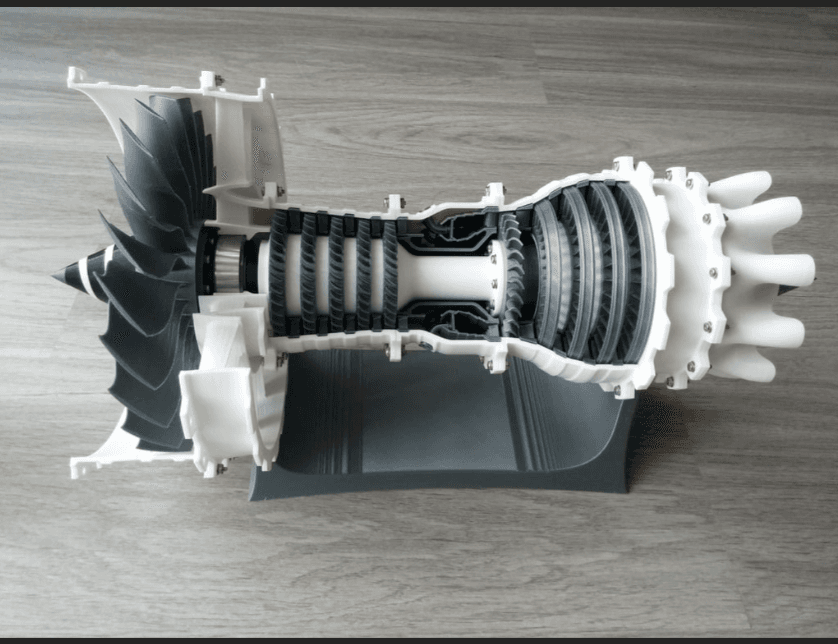

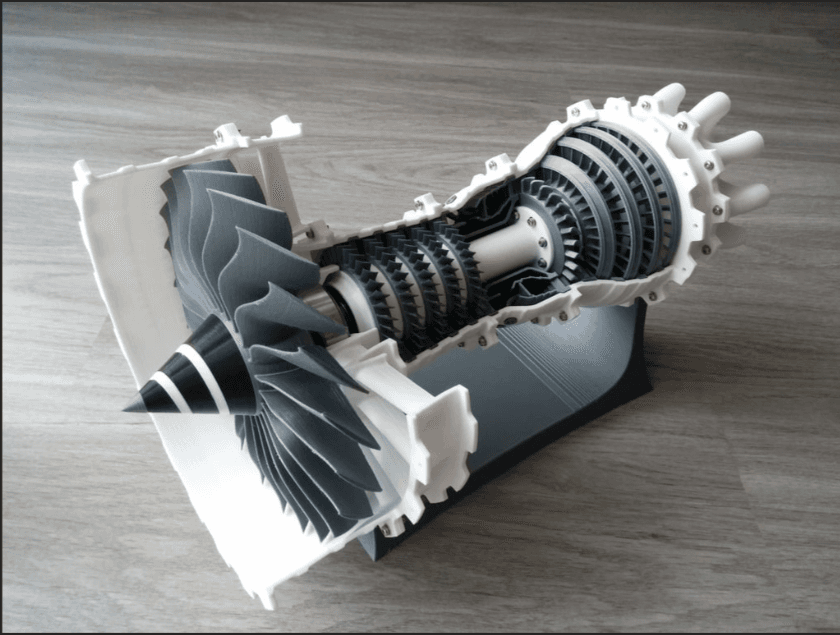

Bring the power of aviation into your classroom or office with this High-Bypass Turbofan Jet Engine Cutaway Model. Designed as a tribute to modern engineering (with visual cues from Rolls-Royce engines), this model is fully functional mechanically. True 2-Spool Mechanics: Just like a real jet engine, this model features independent high-pressure and low-pressure spools. The N1 (Fan) and N2 (Compressor/Turbine) shafts spin independently on high-quality 6204 and 6003 ball bearings, ensuring smooth, friction-free rotation. Educational Cutaway: The casing features a large quarter-section cutaway, revealing the internal compressor stages, combustion chamber, and turbine blades. It is the perfect tool for demonstrating how air is compressed, ignited, and exhausted to create thrust.
Features
- Dual-Spool Design: Independent Low-Pressure and High-Pressure shafts spin separately.
- Smooth Bearing Action: Runs on 4 large industrial ball bearings (20mm & 17mm bore) for realistic coast-down.
- Detailed Internal Staging: Features visible Intake, Compressor, Bypass Duct, and Turbine sections.
- Rolls-Royce Style Fan: Distinctive curved fan blades designed for aesthetic realism.
- Museum Quality Display: Mounted on a custom stand, making it an ideal centerpiece for engineering desks.
